The SatExpander SE300X Professional IP Satellite Modem is the natural choice for data applications that require satellite transfer rates of up to 30Mbps. In full duplex mode, the SE300X can simultaneously send and receive a total of 60Mbps per modem. The SE300X is a member of the SatExpander Professional Satellite Modem series along with the SE3000 Professional High-Data Rate Satellite Modem (up to 850Mbps). Like the SE3000, DVB-S2 is the basic satellite transmission standard in the SE300X modem. The SE300X and all SatExpander equipment also support DVB-S, DVB-S2 with 5% Roll-off Filter (ROF), DVB-S2X and SatExpander SATX-2.

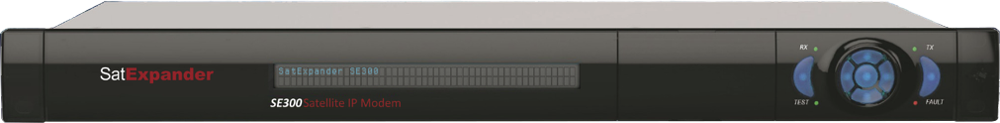

SatExpander SE300X Professional IP Satellite Modem



Key Features

  • Scalable from 100kbps to 60Mbps (30Mbps x2)
  • DVB-S2 (EN 302 307) & DVB-S2X compliant
  • DVB-S, DVB-DSNG (EN300-421, EN301-210) transmission compliant
  • Symbol rate 0.1-36Msps
  • SatExpander SATX-2TM technology
  • Modulation: BPSK, QPSK, 8APSK, 16APSK, 32APSK, 64APSK
  • LDPC (Low Density Power Check)
  • Roll-off Filter: 5%, 10%, 15%, 20%, 25%, 35% with both DVB-S2 and SatExpander SATX-2
  • SatExpander DUET™ CeCTM (carrier-echo-cancellation) technology
  • Dual Band Support (IF-Band 50-180MHz & Extended L-Band 950-2150MHz)
  • 10-15dB stronger jamming immunity
  • Optimized ACM mode
  • IP Processing Enhancements
  • VLAN switching (Layer 2)/ Router mode (Layer 3)
  • NSPE™ IP Encapsulation
  • Advanced QoS (Quality of Service)
  • IP Transparent Bridging
  • Jumbo frame support
  • Header Compression
  • WAN Acceleration (TCP, Payload Acceleration)
  • Gigabit Ethernet (GbE), Up to 4 E1/T1 interfaces, SFP
  • 2 ASI interfaces
  • Dual Channel Support (ASI & IP or 2 ASI streams)
  • L-Band monitoring output
  • 24V/48V integrated BUC feeder
  • Supports N+1 redundancy
  • Carrier ID (CID) compatible
  • Secured transmission
  • AUPC (Automatic Uplink Power Control)
  • Technology Agnostic Network Management System
  • Over-the-Air (OTA): Management & Control and Software upgrades
  • Compatible with all SatExpander satellite equipment (modulators, demodulators, modems)
  • TSoIP Support



Scalable Performance

The SE300X platform offers a wide range of performance boosting options including DVB-S2 with 5% ROF, ACM/VCM, AUPC (Automatic Uplink Power Control), Carrier ID (CID) compliance and Dual channel support for ASI & IP or two ASI data transmissions. All of these options work with both DVB-S2 and SatExpander SATX-2 configurations.
When you upgrade to SatExpander SATX-2 transmission technology, the SE300X typically boosts spectral efficiency by 40% to 60% compared with DVB-S2 equipment. SatExpander SATX-2 also adds superior resilience to jamming, interference, phase noise and weather fluctuations. For additional savings in operational costs, add optional SatExpander DUET CeC to double the bandwidth available on a single carrier. These and other unique technologies give the low-cost, high performance SatExpander SE300X Professional Satellite Modem the highest performance and most compelling ROI for businesses with satellite data transmission needs.



Low-Data Rate Broadcast and Data

The SE300X modem includes built-in IP processing features to make data transmission more efficient and cost-effective. The SatExpander SE300X supports point-to-point and point-to- multipoint links and incorporates the SatExpander high- efficiency NSPETM encapsulation scheme. The SE300X integrated IP processing unit supports a wide range of features such as advanced QoS, transparent bridging (Layer 2), VLAN switching (Layer 2),routing mode (Layer 3) and header and payload acceleration.
Equipped for data transmission, the SE300X comes with 4 E1/T1 interfaces for cellular backhaul, 2 ASI interfaces for video and Gigabit 1000Base-T. It also has built-in hardware support for LDPC advanced FEC. SatExpander DUET CeC (carrier-echo-cancellation). All this makes the SE300X the ideal low-data-rate modem for cellular backhaul, IP trunking and other data services applications, not to mention a valuable asset for broadcasters’ DSNG units.



Specifications

Parameter DVB-S2 SatExpander SATX-2 Features
 QPSK  1/4, 1/3, 2/5, 1/2 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 1/4, 1/3, 2/5, 13/30, 7/15, 1/2, 8/15, 17/30, 3/5, 19/30, 2/3, 32/45, 3/4, 4/5, 5/6, 8/9, 9/10 Maximum rate: bidirectional 60Mbps (2×30 Mbps)

Symbol rate: 0.1 ~ 36Msps

DVB-S, DVB-S2, DVB-S/S2 with 5% ROF, DVB-S2X, DVB-DSNG & SatExpander SATX-2 compliant

SatExpander DUET CeC (Carrier echo cancellation) technology – PtP & PtMP

IP Enhancements:
– Bridge mode (Layer 2)/ VLAN switching (Layer 2)/ Router mode (Layer 3)
– IP Encapsulation (NSPE)
– QoS (Quality of Service)
– WAN Acceleration (TCP, Payload Acceleration)

ACM – Adaptive Coding & Modulation, Up to 1 dB/Sec/PtMP configuration

AUPC – Automatic Uplink Power Control

OTA – Over the Air: M&C, Software Upgrade

Data interfaces: GbE (1000Base-T), 4 E1/T1, 2 ASI Tx/Rx pairs, SFP Carrier ID (CID) compliant

8PSK 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 2/5, 13/30, 7/15, 1/2, 8/15, 17/30, 3/5, 19/30, 2/3, 32/45, 3/4, 4/5, 5/6, 8/9, 9/10
16APSK 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 2/5, 13/30, 7/15, 1/2, 8/15, 17/30, 33/5, 19/30, 2/3, 32/45, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK 3/4, 4/5,5/6, 8/9, 9/10 2/5, 13/30, 7/15, 1/2, 8/15, 17/30, 3/5, 19/30, 2/3, 32/45, 3/4, 4/5, 5/6, 8/9, 9/10
64APSK N/A 19/30, 2/3, 32/45, 3/4, 4/5, 5/6, 8/9, 9/10
Frame Length 16200, 64800 16200, 64800
ROF SRRC 5%, 10%, 15%, 20%, 25%, 35% “SRRC Like” 5%, 10%, 15%, 20%, 25%, 35%





Modulator RF Ports – L-Band

Connector SMA (F) 50 Ohm or N-type (F) 50 Ohm +24/+48V/120W (opt)
Frequency Range 950 ~ 2150MHz in 10Hz steps
Power Level -30 ~ 0dBm
Power Setting Resolution 0.1dB
Power Accuracy/Temperature Stability ± 0.5dB/±0.5dB
Return Loss >12dB
Spurious -55dBc in band and out of band at max power
Phase Noise @100Hz–70dBc, @1kHz–80dBc, @10kHz–85dBc @100kHz–95dBc, @1MHz–100dBc





Demodulator RF Ports – L-Band

Connector F-Type (F) 75 Ohm
Frequency Range 950 ~ 2150MHz in 10Hz steps
Signal Level -106+10log(F) (F in MSPS) Max: -20dBm
Composite Power <-20 dBm
Return Loss >12dB
LNB Power Control 11.5 ~ 14 V (Vert. Pol.), 16 ~ 19V (Horiz. Pol.)
Voltage
Band Select 22kHz ±4kHz
Max. Current 350mA





Modulator RF Ports – IF-Band

Connector BNC (F) 75 Ohm
Frequency range 50MHz ~ 180MHz in 10Hz steps
Power level -30 to 0dBm
Power setting resolution 0.1dB
Power accuracy/temperature stability ± 0.5dB/±0.5dB
Return loss >12dB
Spurious -55dBc in band and out of band at max power





Demodulator RF Ports – IF-Band

Connector BNC (F) 75 Ohm
Frequency Range 50MHz ~ 180MHz in 10Hz steps
Signal Level -106+10log(F) (F in MSPS) Max: -20dBm
Composite Power <-20 dBm
Return Loss > 10dB
LNB Power Control: 11.5 ~ 14 V (Vert. Pol.), 16 ~ 19V (Horiz. Pol.)
Voltage
Band Select 22kHz ±4kHz
Max. Current 350mA





Monitor and Control Interfaces

Sw Interfaces BNC (F) 75 Ohm
M&C Interfaces   50MHz ~ 180MHz in 10Hz steps
Data Interfaces -30 to 0dBm





Physical

Weight 4kg (8.8 lbs)
Size 19”W x 18”D x 1.75”H
48.3 x 45.7 x 4.45 cm
10MHz Clock Stability ±1.0 ppm over 0°C to 50°C (standard)
±0.03ppm over 0°C to 50°C (option)
Aging ± 1.0 ppm/year (standard)
± 0.075 ppm/year (option)





Environmental

Prime Power 100 ~ 240 VAC, 50 ~ 60Hz
48VDC (Option)
Operating Temp. 0 ~ 50°C
Storage Temp. -40°C ~ 70°C
Operating Humidity Up to 85% Non-Condensing
Storage Humidity Up to 95% Non-Condensing
